Bridge parts

Aerial view to the bridge
Вид на мост с высоты

Parts of the permanent forms of the automobile bridge over the railway tracks in the Moscow region. There are several types of cornice blocks that make up the appearance of the bridge. Designed in Fusion. The molds are made of laminated plywood using CNC. The bridge parts are made of fiberglass reinforced concrete (GFRC).

Tags: #Autodesk Fusion, #cnc milling, #concrete forms, #hand tools, #plywood, #power tools, #team work
Made: April 2021

More pictures

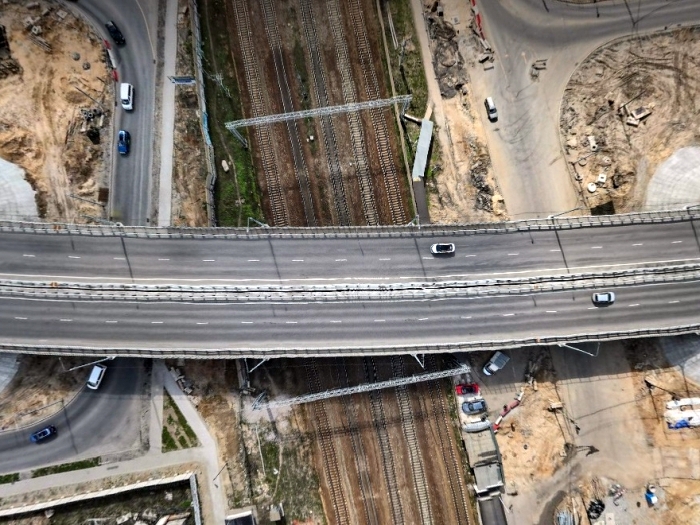

Aerial view to the bridge
Вид на мост с высоты

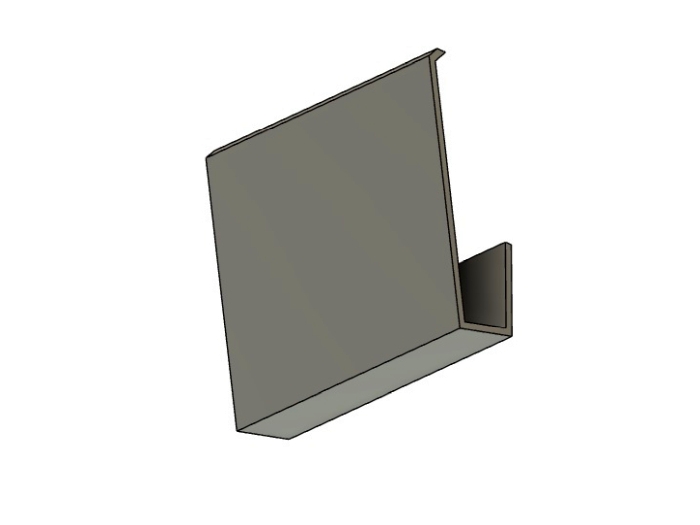

3D model of the cornice block
Модель карнизного блока

3D model of the cornice block with the support of the lighting mast
Модель карнизного блока с опорой мачты освещения

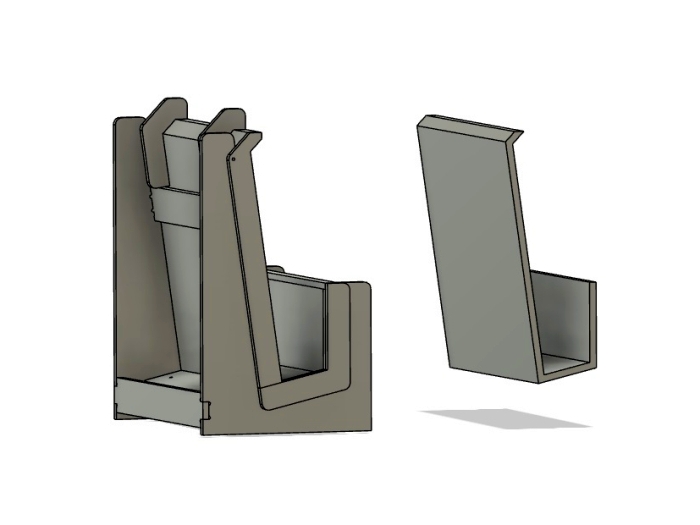

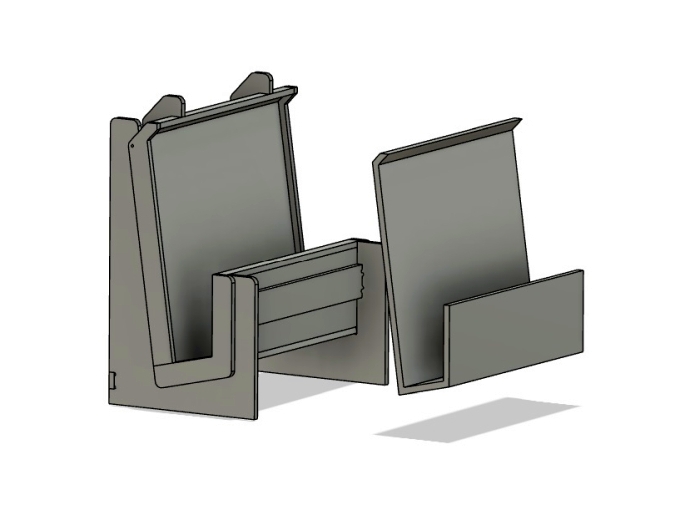

3D model of the cornice block and its casting form
Модель карнизного блока и формы для его изготовления

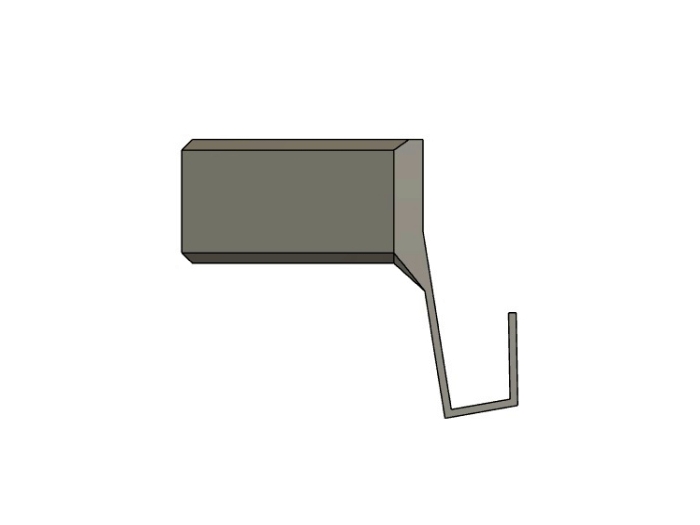

Profile of of the cornice block with the support of the lighting mast
Профиль карнизного блока с опорой мачты освещения

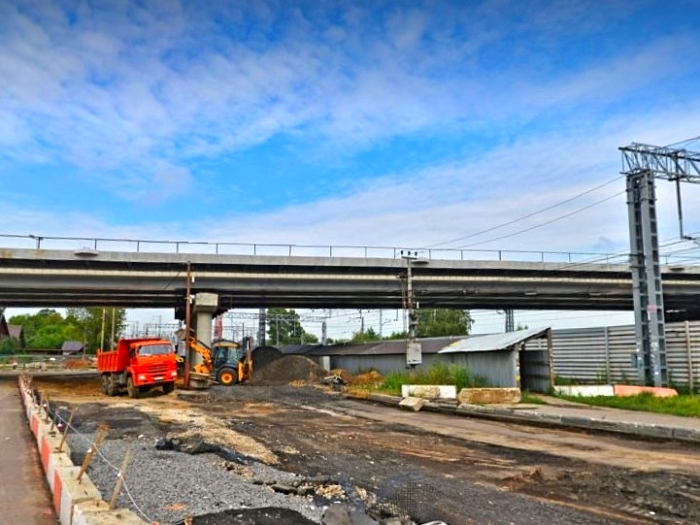

Side view to the bridge
Вид на мост со стороны

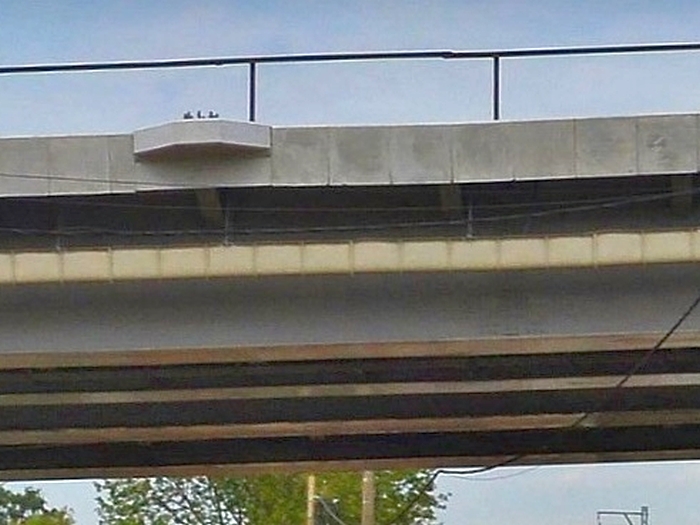

Closer view to the cornice blocks
Вид на карнизные блоки

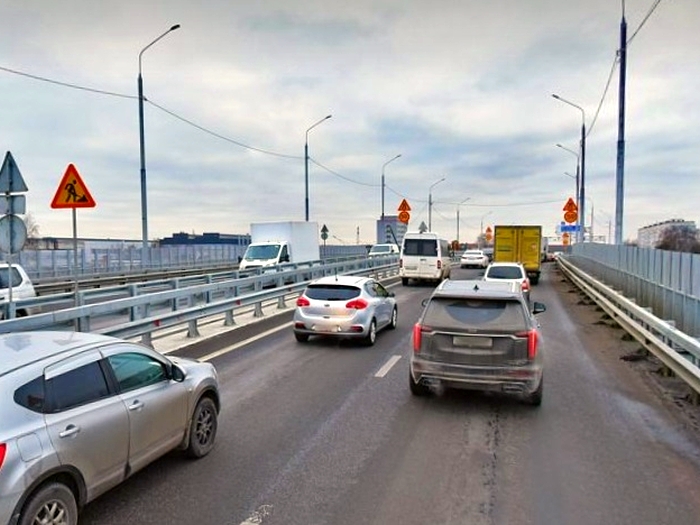

The roadway
Проезжая часть
